Integration

ForensiQ supports multiple integration methods to connect with external systems for event notification and data streaming. The main options are:

  • Webhook: Send detection events to any HTTP endpoint for real-time integration.
  • Kafka: Stream detection results to downstream consumers using a scalable message bus.
  • Genetec Security Center: See Genetec Security Center Integration for details on sending events to Genetec SC.
  • Milestone XProtect: See Milestone XProtect Integration for details on sending analytics events to Milestone XProtect.

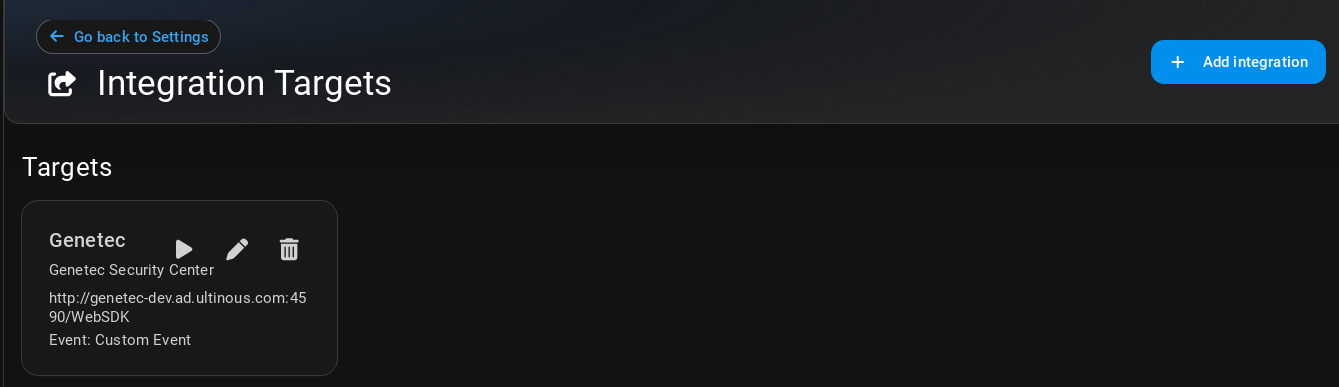

Integration targets can be configured in Settings Integration Targets and then selected when setting up Live analytics for real-time event detection and notification.

Webhook

Searches can be configured to send detections to a Webhook URL.

  1. Open Integration Targets from the Settings menu in the top right corner.

  2. Click the Add Integration Target button and select Webhook from the dropdown menu.

  3. Fill in the following fields:

  • URL: The URL of the Webhook.
  • Custom header key (optional): The static key of the custom header.
  • Custom header value (optional): The value of the custom header. The value supports the same variables and syntax as webhook payload templates.
  • Template (optional): A custom webhook request body. See Webhook payload templates.

Once the Webhook is configured as an integration target, it will appear in the list of available alarm integrations when setting up a Live Rule.

Webhook payload

Webhook payloads contain a unique eventId and the identifier and display name of both the Search/Rule and the Use Case. The same event ID is written to event Kafka and sent to every webhook target configured for an emitted event. Detection events contain a detections array:

Each input event is sent separately without timestamp grouping. A single detection produces a one-item detections array, a detection set produces one event containing the full set, and a detection pair produces one event containing both detections. The following is a complete detection webhook payload example:

Payload fields

Field Type Description
eventId string Unique identifier of the event. For alarm events, this is the same identifier that is written to event Kafka.
queryId string Identifier of the Rule that produced the event.
queryDisplayName string Display name of the Rule that produced the event.
queryTypeId string Identifier of the Use Case.
queryTypeDisplayName string Display name of the Use Case.
detections array Detections affected by an alarm event. Present only for detection events.
result object Aggregated counting values. Present only for counting events.

Exactly one of detections and result is present in a payload.

Detection objects can contain the following fields:

Field Type Description
video_id string Identifier of the source video.
frame_time integer Frame timestamp in milliseconds since Unix epoch.
track_id integer Track identifier within the video.
frame_width integer Width of the source frame in pixels.
frame_height integer Height of the source frame in pixels.
obj_type string Detected object type.
box object Bounding box containing x, y, width, and height in pixels.
confidence number Detection confidence score.
features object Optional generic feature-vector data.
person_attributes object Optional person-specific attributes.
vehicle_attributes object Optional vehicle-specific attributes.
attributes array Additional Rule-specific name, type, and value attributes.
end_of_frame Boolean Indicates an end-of-frame marker.
Generic detection attributes

The attributes array carries Rule-specific values that do not have dedicated fields in the detection schema. Each item has the following structure:

Field Type Description
name string Stable attribute identifier. Names are case-sensitive and commonly use a component prefix, such as facerec. or crowd..
type string Data type of the original value, such as string, float, double, integer, or long.
value string Attribute value serialized as text. Use type to convert it to the required native type.

For example, a speed measurement is represented as:

"attributes": [
  {
    "name": "calcspeed.speed",
    "type": "float",
    "value": "42.5"
  },
  {
    "name": "calcspeed.unit",
    "type": "string",
    "value": "km/h"
  }
]

The following attributes can be produced by built-in Use Cases:

Name Typical type Description
facerec.entity_id string Identifier of the matched face-recognition entity.
facerec.similarity float Similarity score of the face-recognition match.
facerec.imageset string Identifier of the image set used for face recognition.
free_text.similarity.<modelId> float Free-text similarity score for the model identified by <modelId>.
anomaly_detection.earliest_frame_time long Earliest frame timestamp associated with an anomaly, in milliseconds since Unix epoch.
calcspeed.speed float Calculated object speed. Interpret together with calcspeed.unit.
calcspeed.unit string Speed unit, such as km/h or mph.
presenceChange string Presence-change direction: appear or disappear.
crowd.avg_count double Average number of detections in the crowd-analysis window.
crowd.frame_detections_count integer Number of detections in the selected crowd frame.
duallinecross.line_id integer Technical identifier of the crossed line.
cluster string Identifier assigned to a face cluster.

The available attributes depend on the Use Case and may be extended in future versions. Integrations should ignore unknown attribute names unless they are explicitly required.

The result object can contain the following fields:

Field Type Description
windowStart string Start of the aggregation window in ISO 8601 format.
windowEnd string End of the aggregation window in ISO 8601 format.
count integer Count produced by traffic or dual-line counting.
average number Average object count in the window.
minimum integer Minimum object count in the window.
maximum integer Maximum object count in the window.

windowStart and windowEnd are always present in counting results. Depending on the Use Case, the result contains either count, average, or average together with minimum and maximum.

{
  "eventId": "270ca400-331f-4aa4-b6f1-9ed5b9109465",
  "queryId": "b1f2459e-a2ee-4a3d-9566-ee1529e11bb2",
  "queryDisplayName": "Entrance alarm",
  "queryTypeId": "74ff47db-0957-43a0-851d-37d3abccf775",
  "queryTypeDisplayName": "Line crossing",
  "detections": [
    {
      "video_id": "c70bd9e9-4207-4d3e-b38c-386beb562bb3",
      "frame_time": 1747811848918,
      "track_id": 600,
      "frame_width": 1280,
      "frame_height": 960,
      "obj_type": "person",
      "box": {
        "x": 418,
        "y": 145,
        "width": 49,
        "height": 239
      },
      "confidence": 0.5888672,
      "attributes": [],
      "end_of_frame": false
    }
  ]
}

Counting integrations contain a result object instead of detections. Depending on the Use Case, the result contains count, average, or the average, minimum, and maximum statistics. Every result includes its aggregation window:

{
  "eventId": "929dfbe2-7067-46e4-a80f-825377cf55a4",
  "queryId": "b1f2459e-a2ee-4a3d-9566-ee1529e11bb2",
  "queryDisplayName": "Entrance traffic",
  "queryTypeId": "ddade24a-5265-4710-ac8a-ba3ade1cf271",
  "queryTypeDisplayName": "Traffic counting",
  "result": {
    "count": 4,
    "windowStart": "2025-05-26T10:00:00.000Z",
    "windowEnd": "2025-05-26T10:00:05.000Z"
  }
}

Webhook templates receive this same structure as their context. For example, Rule metadata is available as queryId, and the first detection is available as detections[0]. See Webhook payload templates for variable substitution, loops, conditionals, and syntax examples.

Kafka

Search results are stored in Kafka and can be accessed directly by downstream components. Different Use Cases may generate result sets with varying data schemas. This section documents the most common output data schemas used across Use Cases.

Detection

The following Use Cases return Detection records:

  • Multi-condition event
  • Free text search
  • Free text search with threshold
  • Time in area
  • Object in area
  • Line cross detection
  • Object presence change
  • Started object detection
  • Stopped object detection

This is an example Detection record contained in the kafka record value. There are some other non-documented technical fields.

Detection Record Example
{
   "video_id":"c70bd9e9-4207-4d3e-b38c-386beb562bb3",
   "frame_time":1747811848918,
   "track_id":600,
   "frame_width":1280,
   "frame_height":960,
   "obj_type":"person",
   "box":{
      "x":418,
      "y":145,
      "width":49,
      "height":239
   },
   "confidence":0.5888672,
   "person_attributes":{
      "face_attributes":{
         "key_points":{
            "right_eye":{
               "x":0,
               "y":0
            },
            "left_eye":{
               "x":0,
               "y":0
            },
            "nose":{
               "x":0,
               "y":0
            },
            "mouth_right":{
               "x":0,
               "y":0
            },
            "mouth_left":{
               "x":0,
               "y":0
            }
         },
         "confidence":0.0,
         "box":{
            "x":0,
            "y":0,
            "width":0,
            "height":0
         }
      },
   },
   "vehicle_attributes":{
      "license_plate":{
         "confidence":0.0,
         "licence_plate":""
      }
   },
}

Field Descriptions

Some of the fields are technical, we only document the main fields:

  • video_id: string
    A unique identifier for the video from which the frame was extracted. Useful for correlating detections with specific video streams.

  • frame_time: integer (timestamp in milliseconds)
    Epoch timestamp indicating when the frame was captured, in milliseconds since Unix epoch. This allows alignment with other time-based data streams.

  • track_id: integer
    An identifier used to associate detections across frames, i.e., to track the same object over time. Unique per video per object instance.

  • frame_width: integer
    Width of the video frame in pixels. Useful for normalizing coordinates or calculating relative positions.

  • frame_height: integer
    Height of the video frame in pixels. Like frame_width, this helps interpret bounding box dimensions in context.

  • obj_type: string
    The semantic class of the detected object, e.g., "person", "car", etc. Derived from the object detection model.

  • box: object
    Describes the bounding box around the detected object within the frame:

    • x: integer — X-coordinate of the top-left corner of the box.
    • y: integer — Y-coordinate of the top-left corner of the box.
    • width: integer — Width of the bounding box in pixels.
    • height: integer — Height of the bounding box in pixels.

  • confidence: float
    A score between 0 and 1 indicating the model’s confidence in the detection. Higher values imply greater certainty.

  • person_attributes: object
    Further details if the object type is person:

    • face_attributes: object - filled if the face of the person has been detected:
    • key_points: Face key points
    • confidence: Confidence of face detection between 0-1
    • box: Face bounding box

  • vehicle_attributes: object
    Further details if the object type a vehicle class.

DetectionPair

The following Use Cases return DetectionPair records:

  • Measure vehicle speed
  • Near miss detection
  • Tailgating detection
  • Red light running

This is an example DetectionPair record contained in the kafka record value.

DetectionPair Record Example
{
  "left": { /* Detection record */ },
  "right": { /* Detection record */ },
  "speed_in_meter_per_sec": 5.2
}

Field Descriptions

  • left: object
    A Detection record representing the first element of the pair.

  • right: object
    A Detection record representing the second element of the pair.

  • speed_in_meter_per_sec: float (optional)
    The speed of the object in meters per second, if available.

DetectionSet

Currently not used by any Use Case. It is defined to support some of the future Use Cases.

This is an example DetectionSet record contained in the kafka record value.

DetectionSet Record Example
{
  "detections": [ /* Array of Detection records */ ]
}

Field Descriptions

  • detections: array of object
    A list of Detection records forming the set.
